Solenoid Valve

The solenoid valve adopts electric as signal, can work automatically or remote controlled. The automation controlling components of the medium pipe connection can open or close rapidly and easy to use with stable performances.

Product Details

Product Details

Contact Now

Contact Now

Product Details

Main Specifications

  • • Valve Body Material: Brass, Stainless Steel
  • • Interface: Thread 1/8''--3'' Flange 1/2''--3''
  • • Working Pressure: 0-10 kg (0-1.0 MPa)
  • • Flow Passage: Ø2.5-65mm+
  • • Environmental Temperature:-5°C+40°C
  • • Operating Temperature Range: -5°C--80°C / 150°C
  • • Voltage:AC220V AC380V DC24V DC12V(Customized Available)
  • • Power: DN08-10:10W DN15-32:12W DN40-65:15W
  • • Working Medium: Liquid, Gas, Oil

2W Series Two-way Two-position Diaphragm Solenoid Valve

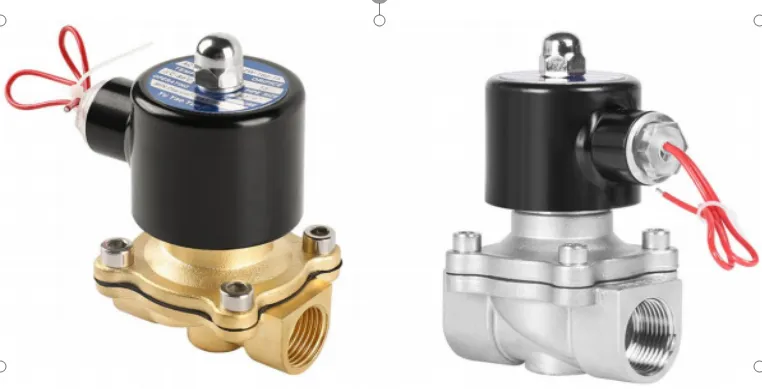

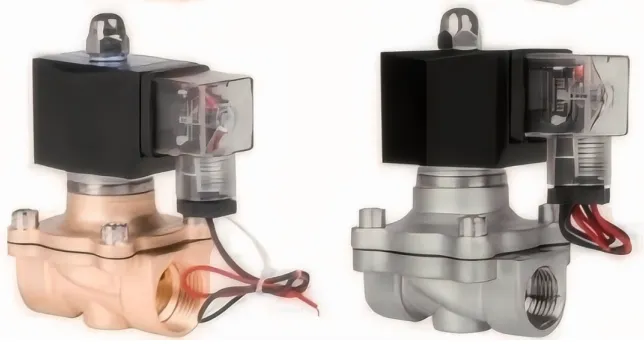

Picture:

Solenoid Valve

Solenoid Valve

Type:

Direct Action, Normally Closed

Direct Action, Normally Closed

Working Form:

Energized Open, De-energized Closed

Energized Open, De-energized Closed

Working situation:

Non-waterproof type

Outdoor Waterproof type

Character:

High cost effective

Low energy Consumption,

without overheating for long term work

Installation Method:

Horizontal installation with the coil facing upwards, allowing an inclination of no more than 30°, with the medium flow direction consistent with the arrow on the solenoid valve.

Model and Specification

2W Series Solenoid Valve-Brass Valve Body

Threaded Connection Specifications and Dimensions



Model

Connecting thread G

Flow Diameter(mm)

Sealing Material

Valve Body Length(mm)

Valve Body Height(mm)

NBR(Nitrile Rubber) ≤80℃



EPDM (Ethylene Propylene Diene Monomer Rubber) ≤120℃



VITON(Fluor Rubber)≤150℃

2w08

1/4’’

2.5

NBR/VITON

38mm

73

2w10

3/8’’

2.5

NBR/VITON

52mm

73

2w15

1/2’’

16

NBR/EPDM/VITON

64mm

107

2w20

3/4’’

20

NBR/EPDM/VITON

66mm

111

2w25

1’’

25

NBR/EPDM/VITON

84mm

120

2w32

11/4’’

32

NBR/EPDM/VITON

100mm

134

2w40

11/2’’

40

NBR/EPDM/VITON

108mm

164

2w50

2’’

50

NBR/EPDM/VITON

130mm

176

2w65

2.5’’

58

NBR/VITON

178mm

204

2w80

3’’

58

NBR/VITON

190mm

215



2W Series Solenoid Valve-Stainless Steel Body

Thread Connection Specifications and Dimensions

Flange Connection Specifications and Dimensions



Model

Connecting thread G

Flow Diameter(mm)

Sealing Material

Valve Body Length (mm)

Valve Body Height(mm)

Valve Body Length (mm)

Valve Body Height (mm)

NBR ≤80℃



EPDM ≤120℃



VITON  ≤150℃

2w10B

3/8’’

10

NBR/EPDM/VITON

68

94

/

/

2w15B

1/2’’

16

NBR/EPDM/VITON

68

94

107

146

2w20B

3/4’’

20

NBR/EPDM/VITON

72

101

107

158

2w25B

1’’

25

NBR/EPDM/VITON

98

108

138

160

2w32B

11/4’’

32

NBR/EPDM/VITON

111

139

148

200

2w40B

11/2’

40

NBR/EPDM/VITON

120

146

154

210

2w50B

2’’

50

NBR/VITON

166

162

185

230

2w65B

2.5’’

58

NBR/VITON

178

205

225

255

2w80B

3’’

80

NBR/VITON

220

220

273

257

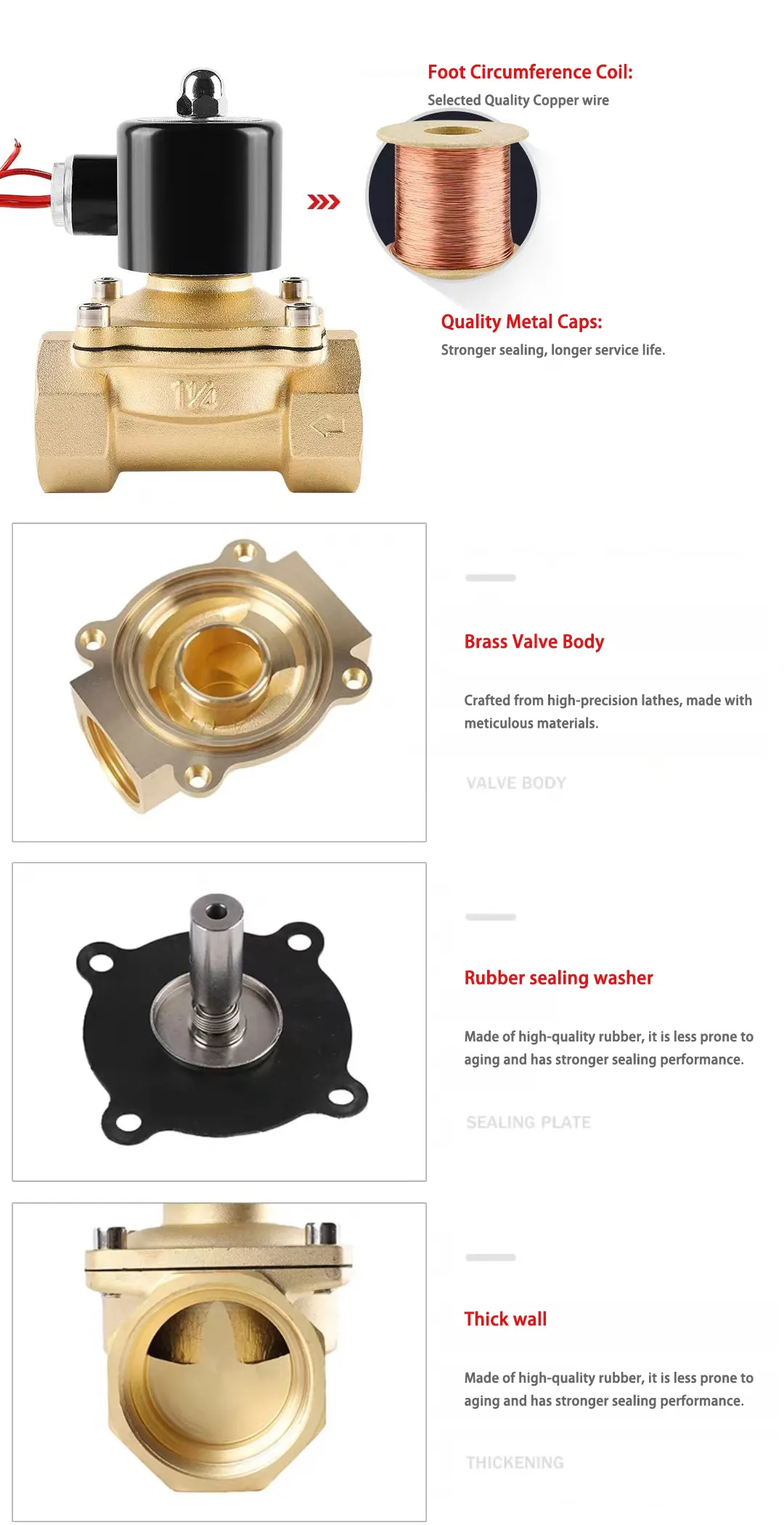

Product Details

Solenoid Valve



Attention of Set up and Usage

1.When setting, the direction of the medium should be as the same as the arrow direction of the valves. The valves should be set up only on horizontal pipes. The coils must be at a vertical position. The valves can not be set up in where splashes or leaks, except for the water proof type.

2.The pipes should be clean thoroughly. The medium should be pure with a viscosity < 4°E.

3.A filter of 80~100 mesh should be set up in front of the valve in order to prevent the stuck of the coils. A check should be setup at the back of the valve when the pressure if high to prevent the lax of shutting down or revering of the medium flow.

4.The valve and the residues on the suction surface of the medal core should be cleaned in time. Please check the sealing when disassembled. The broken parts should be changed in time.

5.The valves should not be used in dangerous environment of explosion. Please order the explosion proof type if you need.

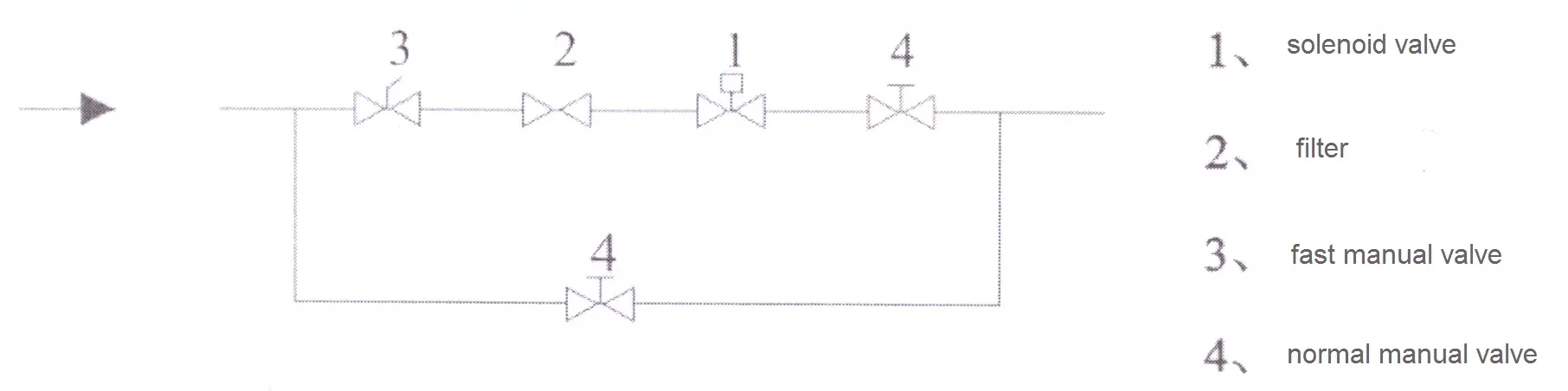

6.The bypass devices should be set up to make sure the normal usage. It can help the in time cleaning and changing when the valves faulty. (see following picture)

Solenoid Valve



7.The power condition should be chose according to the name plate. The control relay should connect the lead wire of the valves into circuit. The valves should be installed grounding when set up the system to make the safety.

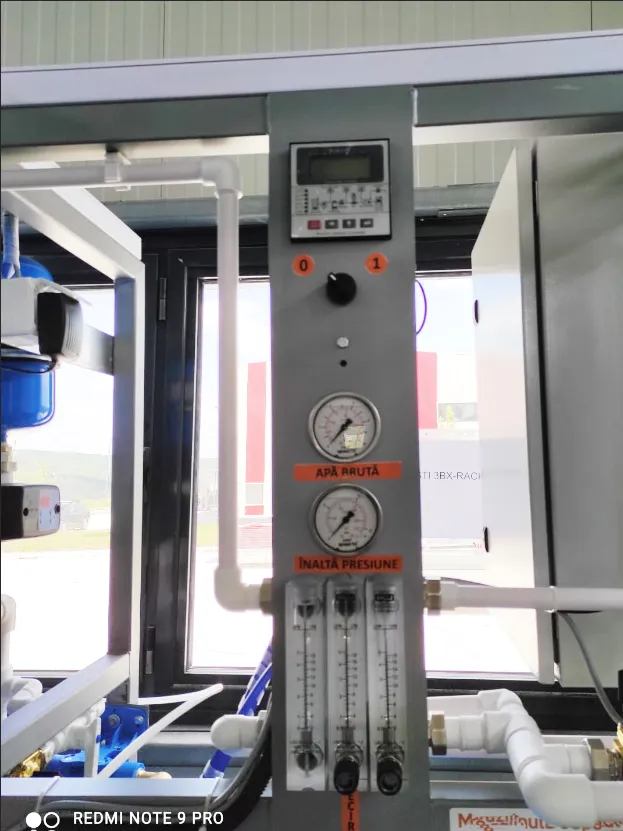

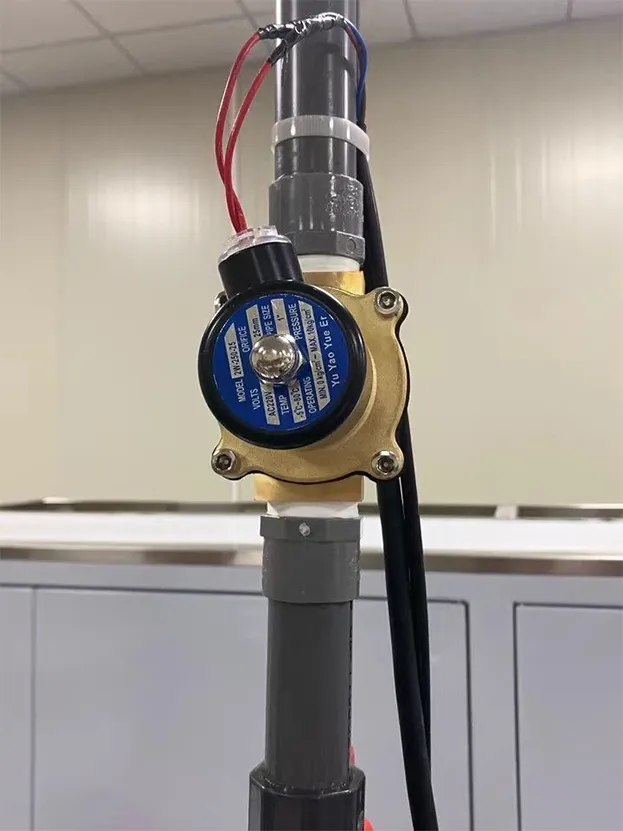

Installation Picture



Solenoid Valve Solenoid Valve

Get in Touch

If you are interested in our products, you can choose to leave your information here, and we will be in touch with you shortly.

* Name

* E-mail

Phone

*Message

FAQS

Frequently Asked Questions (FAQ) About 2W Series Solenoid Valve

What is the use of 2W series solenoid valve?

Down Down

Used to control fluid on-off and other operations.

How to install 2W series solenoid valve?

Down Down

Install and wire at appropriate location according to instructions.

How to use 2W solenoid valve correctly?

Down Down

The flow of electricity is controlled according to the process.

What is the cause of the 2W solenoid valve failure?

Down Down

The coil is damaged or the valve core is blocked, etc.
